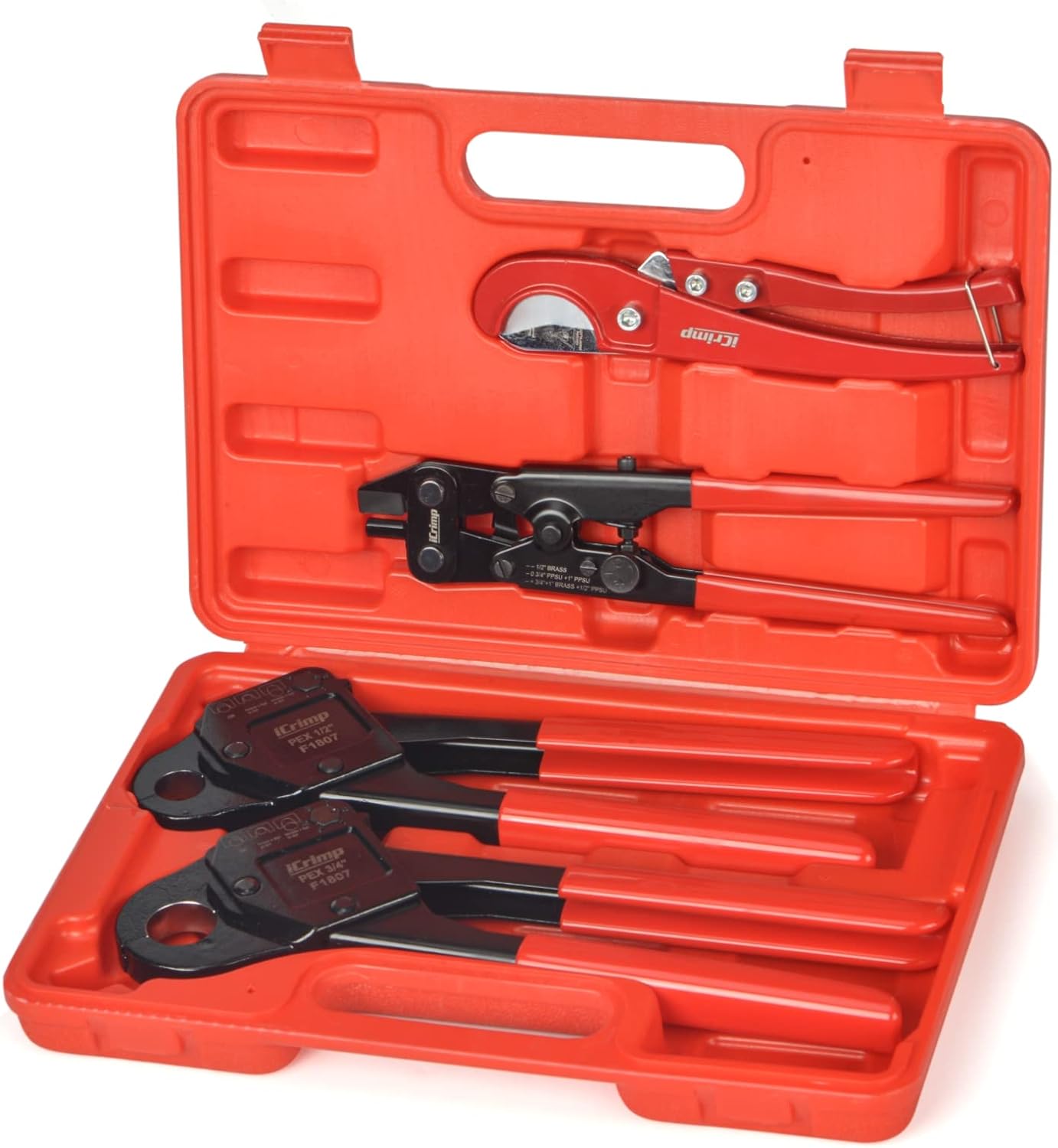

IWS-1807CN is a 5-piece PEX-b crimping tool kit in a compact and durable carrying case, allows you to make a secure connection to PEX with copper crimp rings in sizes 1/2’’ & 3/4’’. Crimp and decrimp PEX copper crimp rings in one tool kit.
Angle head PEX crimpers crimps in 1/2’’ & 3/4’’ sizes are well suited for PEX installation in confined spaces. A go/no-go gauge for gauging crimps is included. The tools are factory calibrated.

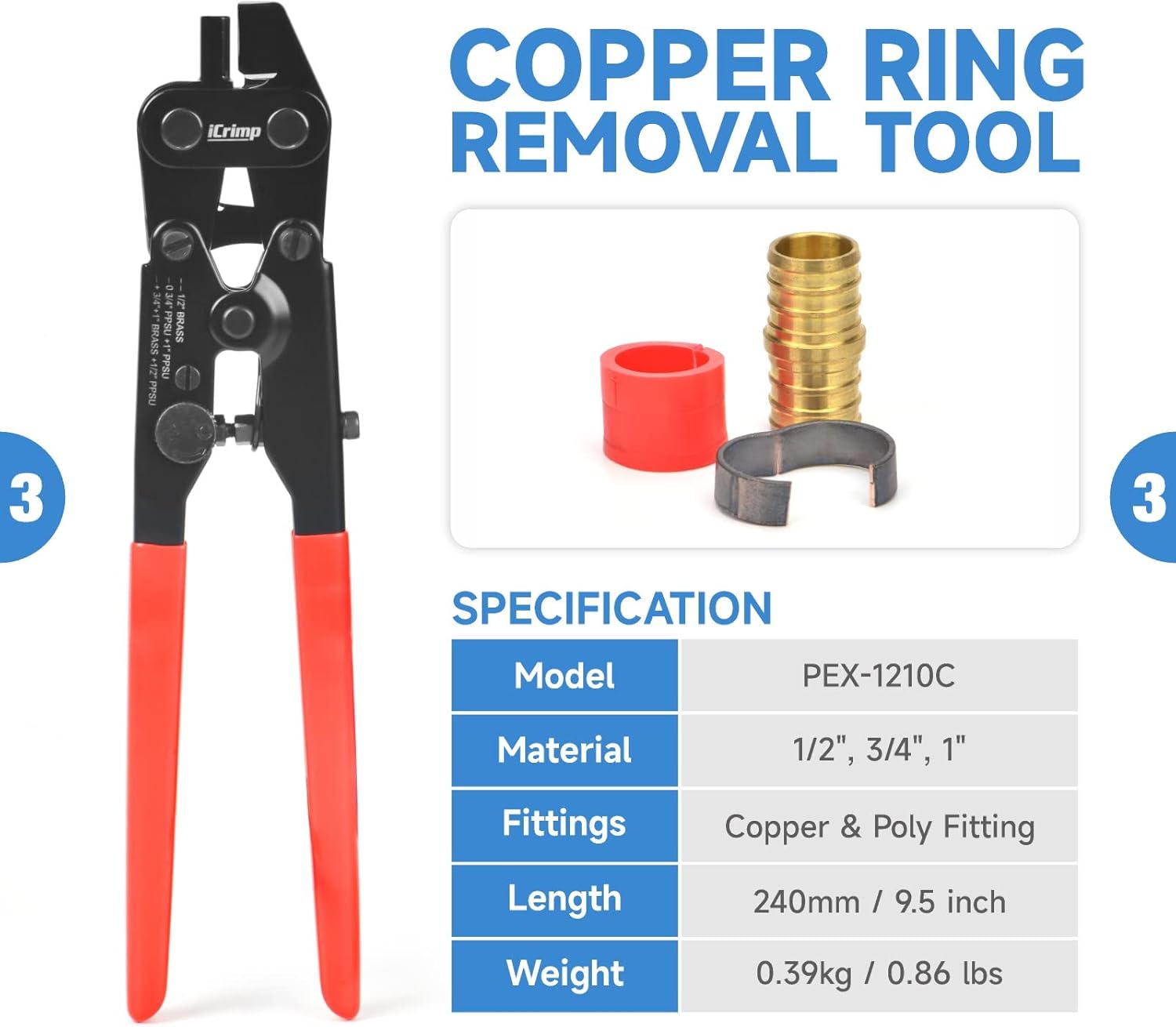

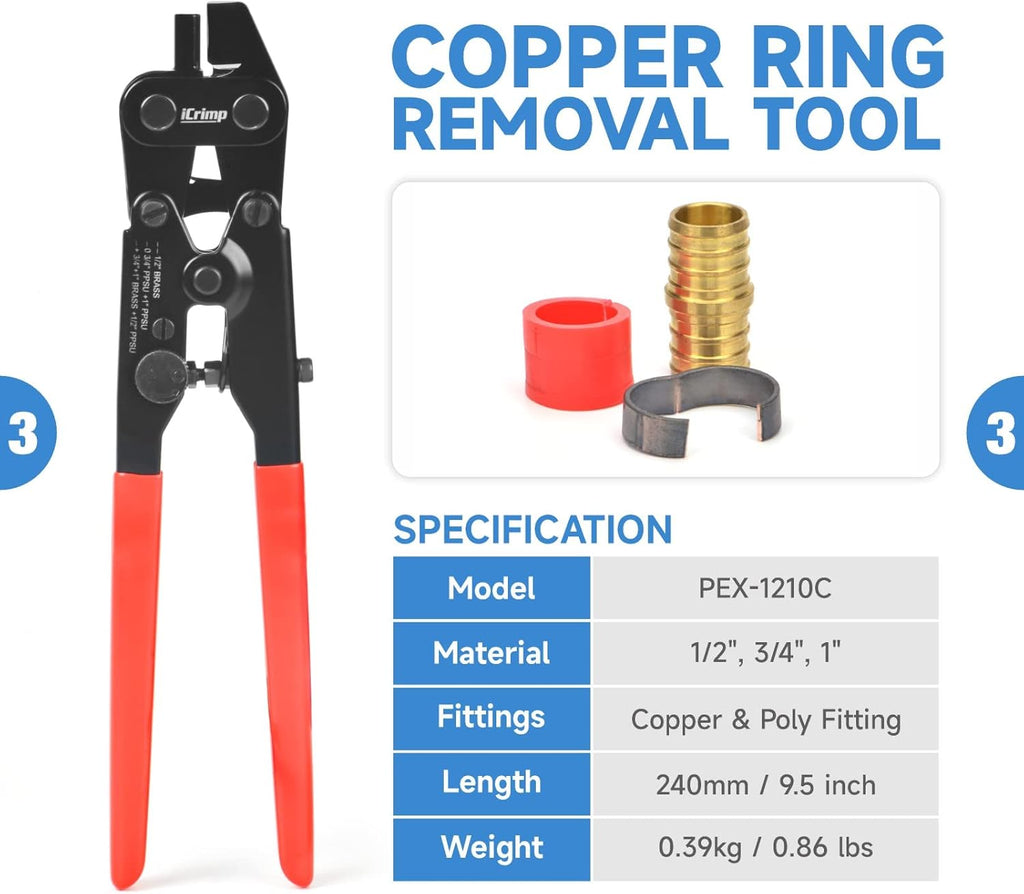

Copper crimp ring removal tool design allows for removal of copper rings from PEX barb fitting connections and allows fittings to be re-used. The tool works on 1/2’’, 3/4’’, 1’’ copper crimp rings.

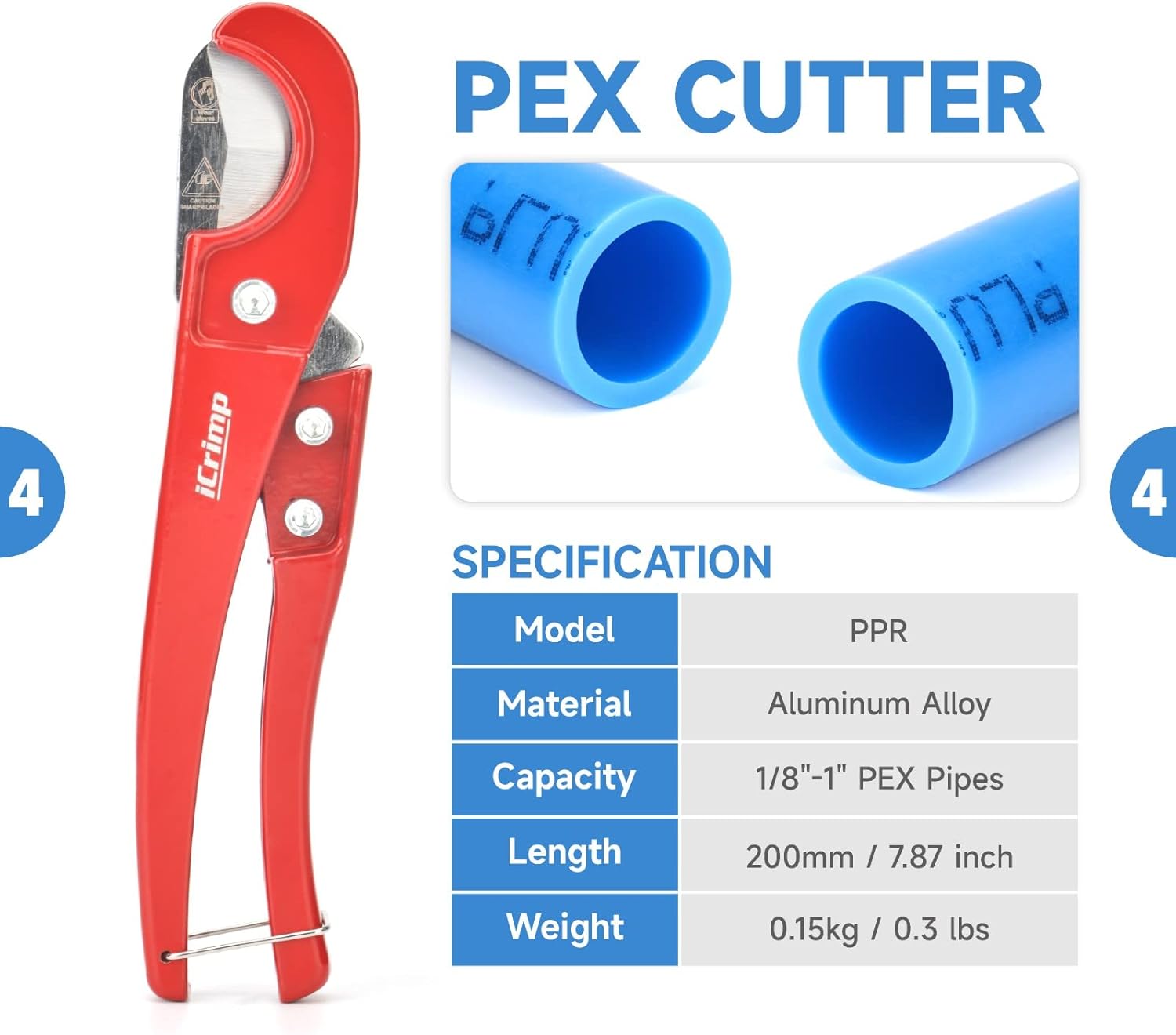

PEX tubing cutter cuts through up to 1 inch PEX tubings like butter.
Each tools are constructed of high quality forged steel for secure connection and long service life. Must have tool for new PEX piping systems and remodeling.

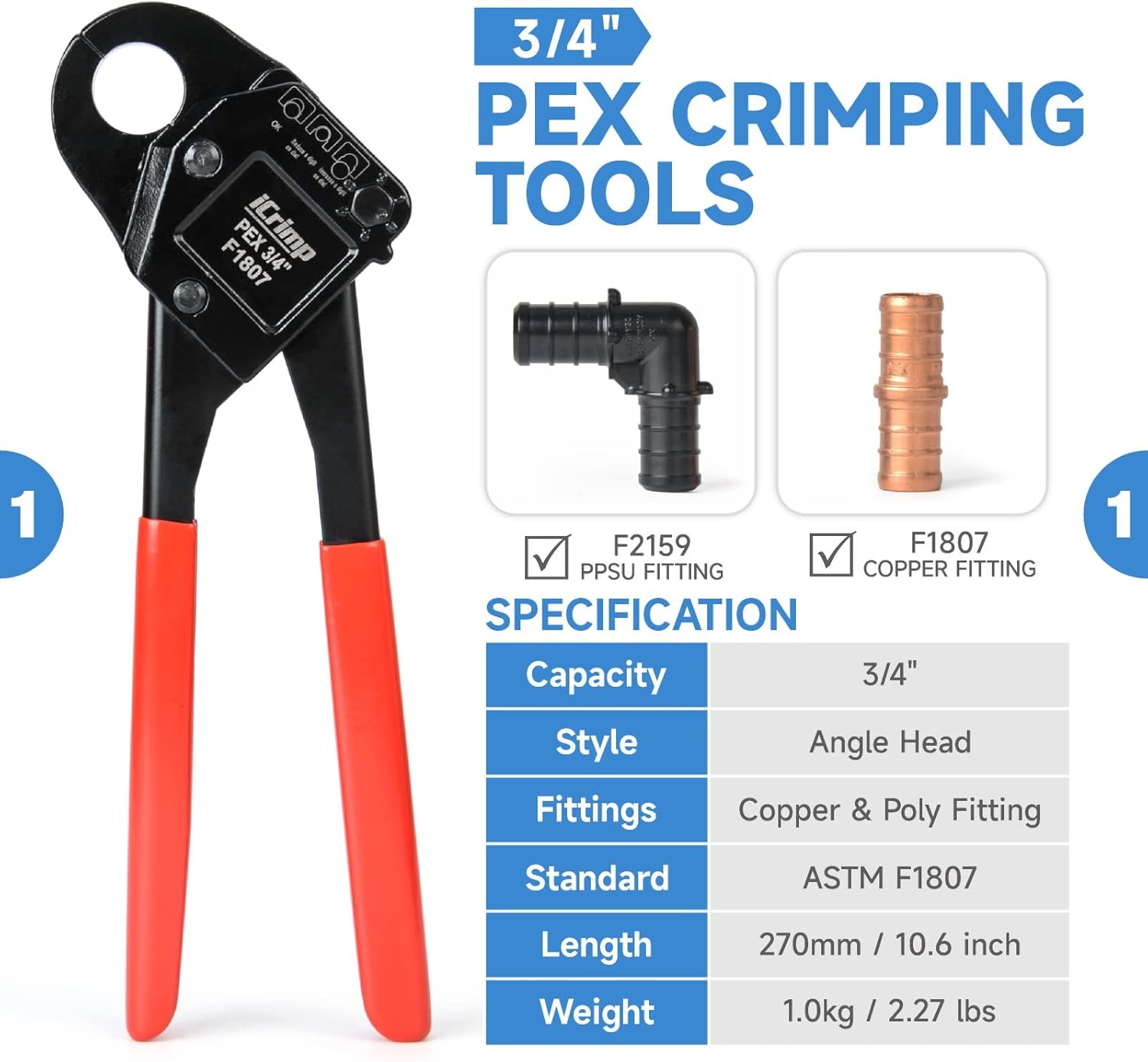

Innovative angle head PEX Crimp Tools are available in 1/2" & 3/4'' and are ideal for making PEX tubing connections in potable water and radiant heating applications.

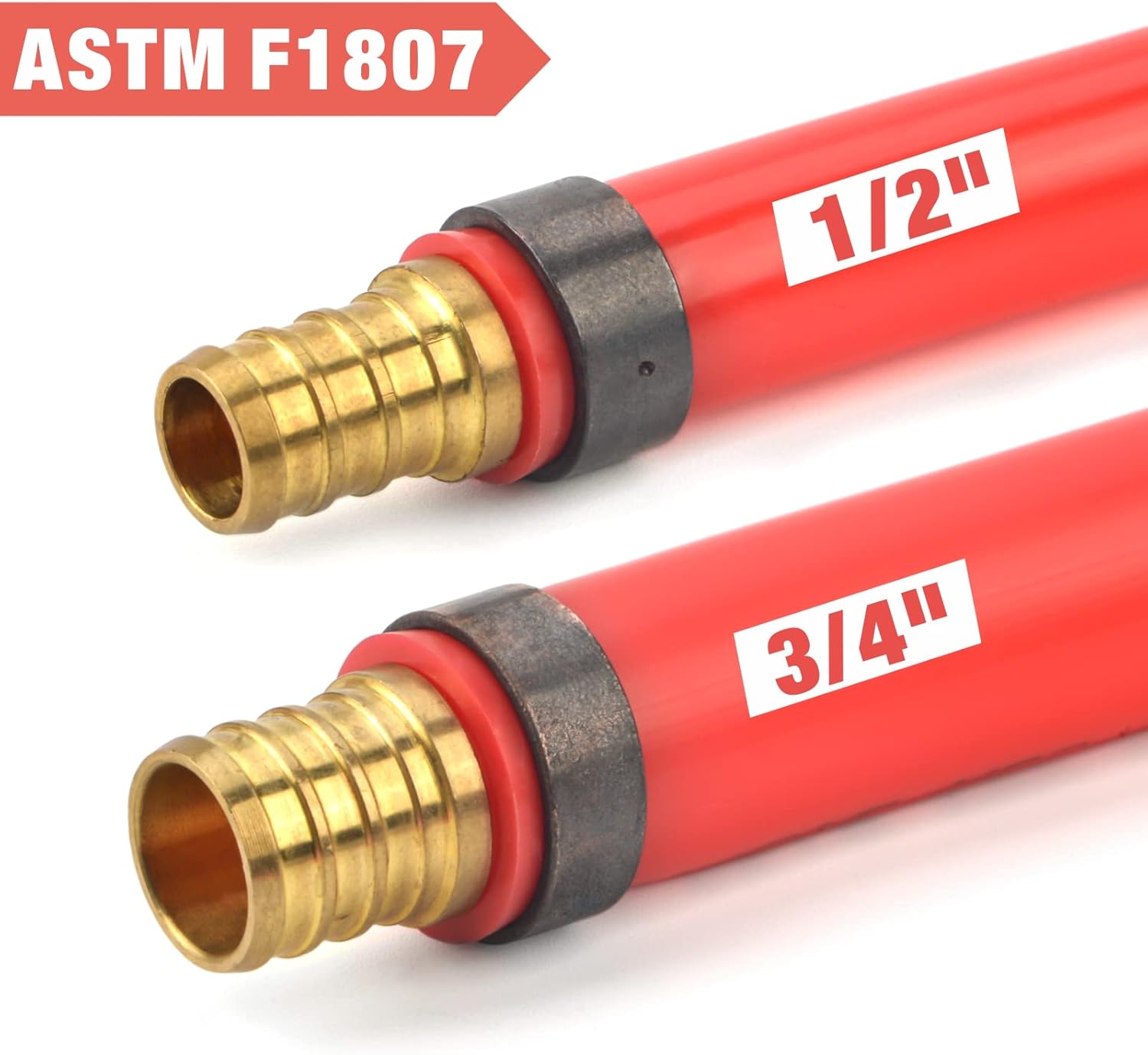

ASTM F1807

Crimp style fittings are the most common and affordable type of PEX fittings. ASTM F1807 covers brass insert fitting and copper crimp rings for use with PEX tubings. Ideal tool for PEX plumbing projects

11/2'' PEX Crimper23/4'' PEX Crimper3Go/No-Go Gauge4Crimp Ring Decrimp Tool5PEX Cutter

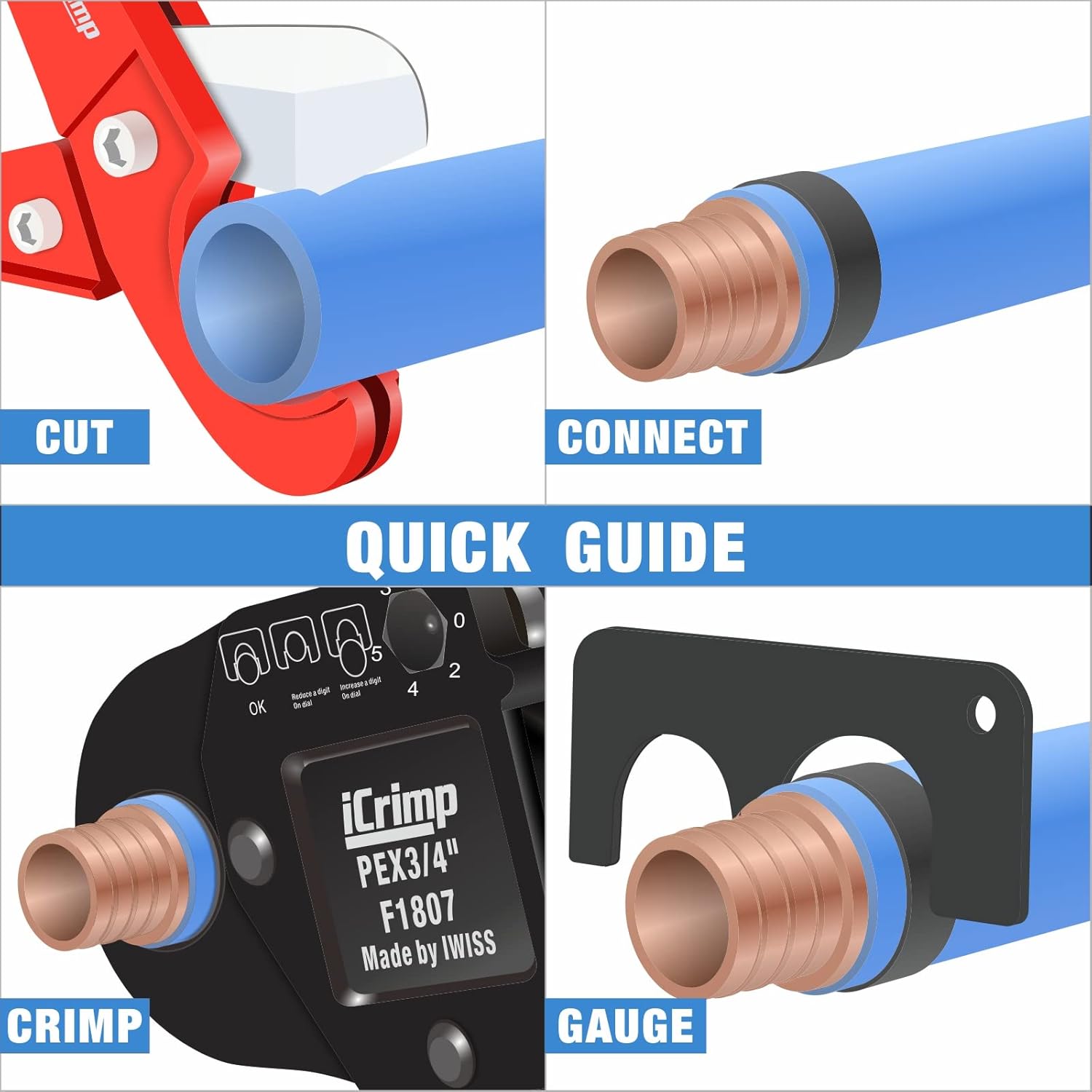

Cut off certain length of PEX tubing squarely.

Insert barbed fitting and slide PEX copper ring over PEX pipe.

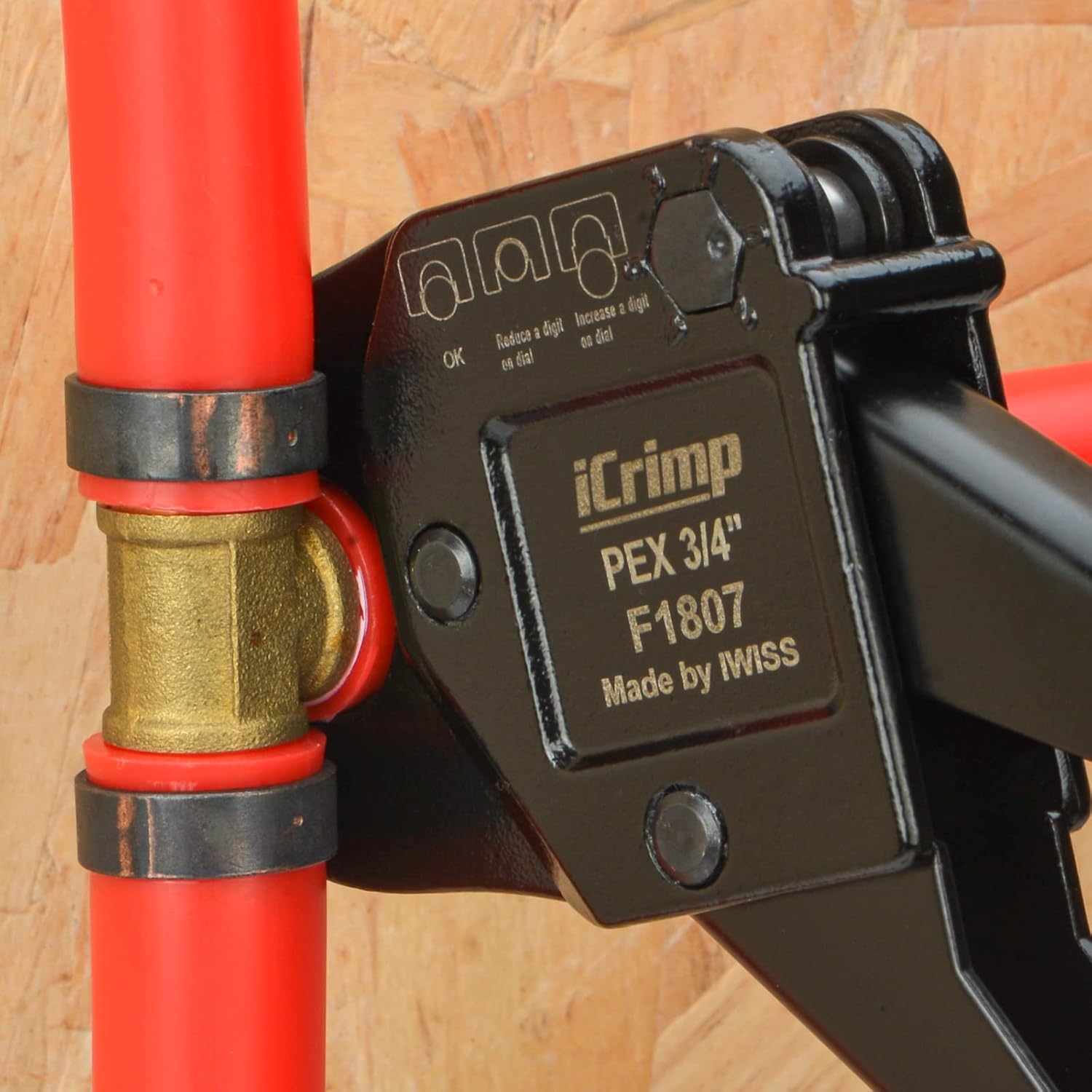

Take PEX crimper and place it over the crimp ring. Squeeze the PEX crimper with enough pressure to crimp the crimp ring tightly onto the PEX tubing.

Take the Go / No-Go Gauge and check if crimping is adequate.

Cut the fitting assembly from the tubing using a pipe cutter. The cut should be close to the fitting.

Squeeze tool handles to cut right through the copper ring.

Rotate the tool 120° - 180° to the uncut portion of the crimp ring and close the tool enough to cause the ring to open up.

Copper crimp ring and PEX fitting are removed.

IWS-1807CN

IWS-FAS

IWS-1234C

Angle Head Crimper

Slides into confined areas with ease.

Multi-Head Crimper

For 3/8'', 1/2'', 3/4'', 1'' PEX tubings.

Dual Size Crimper

Angle head for labor saving crimping.

Contents

Tubing Cutter, PEX Crimper, Crimp Ring Removal Tool

Contents

PEX Crimper, Tubing Cutter

Contents

PEX Crimper, Tubing Cutter, Copper Crimp Rings

How to Avoid Leaks when Installing PEX?

Pressure test and monitor the system as required by local building codes. If there’s a leak somewhere in the system, temperature gauge will give a lower reading than initially. Always use a Go-No-Go gauge to test the PEX connections for accuracy.

How to Remove PEX Copper Crimp Ring?

Removing the copper crimp rings requires a bit of effort and care must be taken to ensure the fitting is not damaged if it is going to be reused. When a ring needs to be removed from fittings the use of a ring cutting tool makes the job easier.

Pinch Clamps vs. Crimp Rings?

Both ways are economical and reliable PEX connection methods. The most primary difference during operation is you can have one tool works with all sizes of pinch clamps. Crimp Tools require different jaw sizes to install different size tubings.

PEX Crimping Tool Kit

Making PEX Crimp Connection

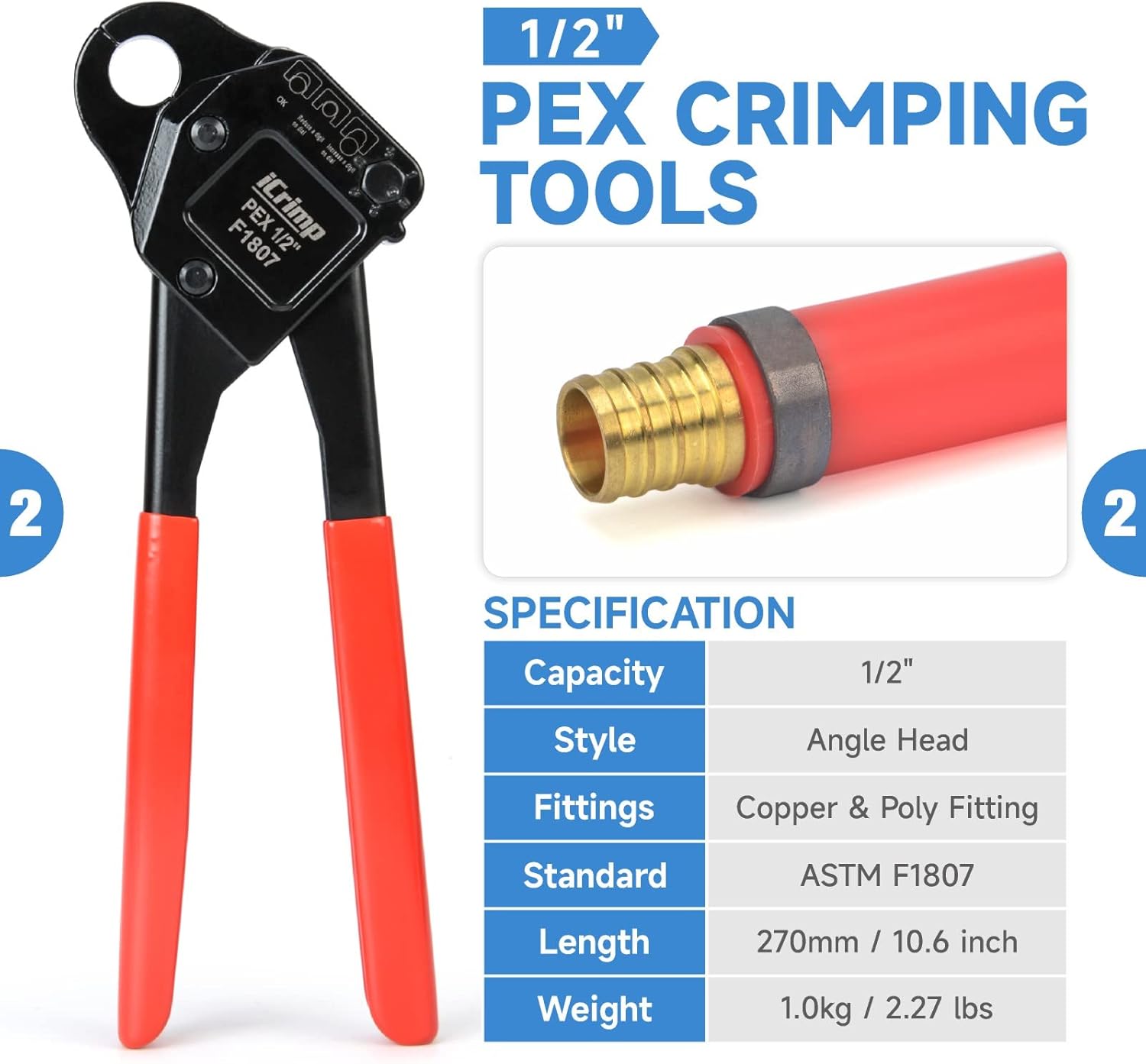

1/2'' PEX Crimping Tool

3/4'' PEX Crimping Tool

Go/No-Go Gauge

Copper Ring Removal Tool

PEX Tubing Cutter

PEX Crimping Connection

PEX Cutting

Position

Crimping

Gauging

PEX Fitting Removal

Cut off PEX

First Cut

Second Cut

Removed

PEX Crimping Tool Kits

How to Avoid Leaks when Installing PEX?

How to Remove PEX Copper Crimp Ring?

Pinch Clamps vs. Crimp Rings?
